Plug-and-play digital counting system for Neopost 600 and Neopost 700 envelope sealing machines

The Envelope Sealer Industrial Counter Kit is a professional counting accessory designed for customers who already own a Neopost 600 or Neopost 700 envelope sealing machine. This system allows operators to quickly and accurately count envelopes after they have been sealed, helping improve job verification, production tracking, and batch accuracy.

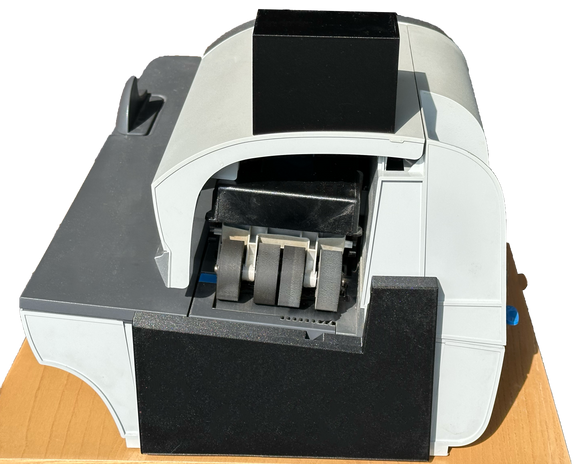

The kit is designed to be simple, reliable, and easy to use. The fitted mount attaches directly to the envelope sealing machine, and the system is powered by the included 24V power supply. Once installed, the operator simply plugs in the power supply and begins counting sealed envelopes as they pass through the machine.

Built with industrial-grade components, the system uses a photoelectric fork sensor, digital counter display, sensor cable, fitted machine mount, and 24V 1A power supply. The sensor is capable of counting far faster than the production speed of the Neopost 600 and Neopost 700 machines, allowing the system to accurately detect envelopes even at the fastest operating speed.

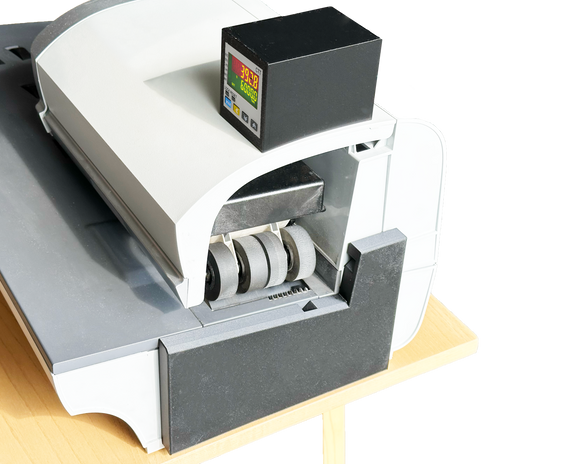

The included digital counter features a professional industrial display and is designed for reliable production use. This makes the kit ideal for mailrooms, production environments, fulfillment operations, and businesses that need a faster and more reliable way to verify sealed envelope quantities.

Key Features

• Designed for Neopost 600 and Neopost 700 envelope sealing machines
• Counts envelopes after they have been sealed
• Can also be used to count pre-sealed envelopes passing through the machine
• Plug-and-play design
• Includes fitted mount for clean installation on the machine
• No complicated setup required
• Industrial-grade photoelectric fork sensor
• Digital 6-digit counter display
• Counts accurately at the fastest production speed of the machine
• Helps verify job quantities
• Reduces manual counting time
• Useful for batch counting, production tracking, and job confirmation
• Includes 24V 1A power supply
• Built as a professional accessory add-on for existing envelope sealer owners

Included Components

• Industrial photoelectric fork sensor
• Digital counter/timer/tachometer display
• Sensor connection cable
• Fitted machine mount
• 24V 1A power supply

Technical Highlights

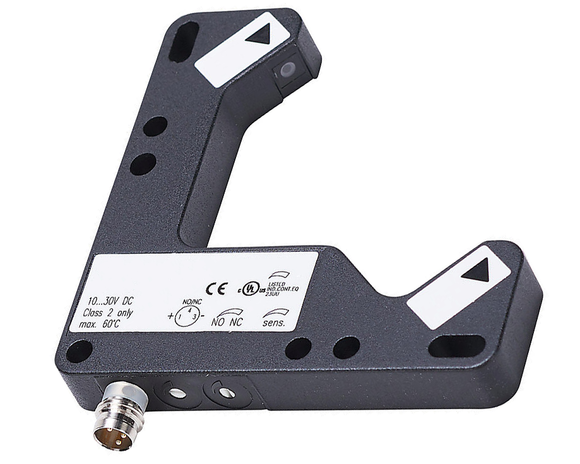

• Sensor type: photoelectric fork sensor
• Sensor style: L-frame fork sensor
• Sensor housing: die-cast zinc
• Sensing method: through-beam
• Light type: visible red
• Sensing distance: 0–60 mm
• Sensor operating voltage: 10–30 VDC
• Sensor output: PNP
• Sensor connection: 3-pin M8 quick-disconnect
• Sensor switching frequency: 1.5 kHz
• Counter display: two-line, 6-digit, two-color LCD
• Counter operating voltage: 24 VDC
• Counter functions: counter, timer, timer + counter, and tachometer
• Counter mount: 1/16 DIN
• Cable: 6.5 ft / 2 m M8 axial female to pigtail connection cable
• Cable rating: IP67
